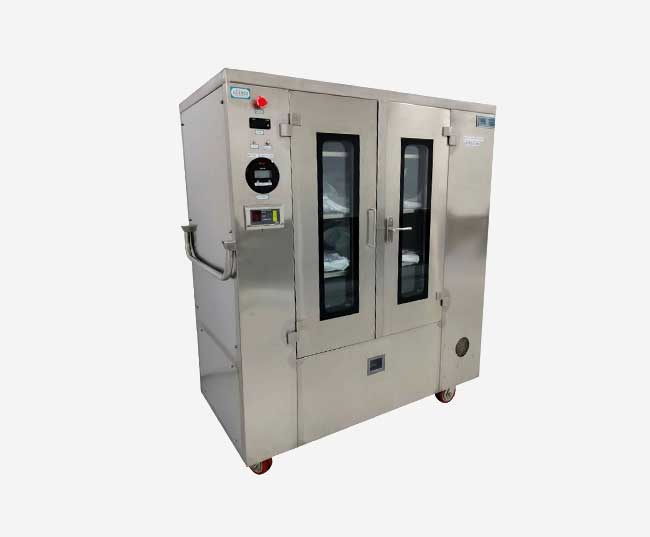

The Mobile LAF Trolley (MLAF) is a fully self-contained, battery-operated clean air system designed to provide a localized ISO Class 5 environment for aseptic, contamination-free transfer and temporary storage of critical materials between classified areas. It ensures continuous clean air protection during material movement, minimizing contamination risks at all transfer points.
This unit operates on a horizontal laminar airflow principle, delivering a single-pass, unidirectional stream of parallel airflow across the work zone. The system incorporates a two-stage filtration process, where incoming air first passes through a pre-filter and is then purified by a high-efficiency HEPA filter to achieve the required cleanliness level. This optimized airflow design ensures uniform, stable, and particle-free conditions during operation.
Get A Quote
×
Technical Details:
MOC : SS 304 / SS 316
Cleanliness Classification: ISO Class 5
HEPA filter - H14 Grade
Pre-filter – F5 Grade
High-efficiency, statically & dynamically balanced AC / EC blower
Differential pressure indicator with audio-visual safety alarms
Double-glazed toughened glass doors
SS Perforated safety grill for HEPA filter and Pre Filter
Advanced microcontroller based system for ON/OFF operation with blower failure indication.
Energy-efficient LED Lighting system
UV Light with Hour meter
Integrated UPS and Battery Backup 30-45 minutes (customizable)
Heavy-duty PU castor wheels for smooth and easy mobility
SS perforated/solid shelves for material storage (customizable)
