Static and Dynamic Pass Boxes

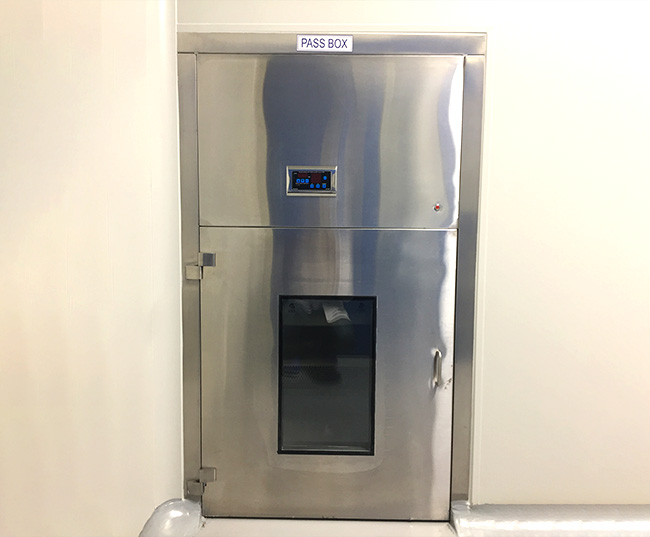

Static Pass Box

Static pass box is used to transfer materials between two cleanrooms or controlled environments that have same cleanliness classification. It minimizes the risk of contamination and maintains the integrity of cleanroom conditions during the material movement. The unit is equipped with a mechanical or electronic interlocking system to ensure that only one door can be opened at a time, providing effective contamination control and operational safety.

Technical Details:

  • MOC : SS 304 / SS 316.
  • Double-walled construction.
  • Double-glazed toughened glass doors.
  • Mechanical / electromagnetic interlocking system.
  • Advanced microcontroller based system.
  • Energy-efficient LED Lighting system.
  • UV Light with Hour meter.

Dynamic Pass Box

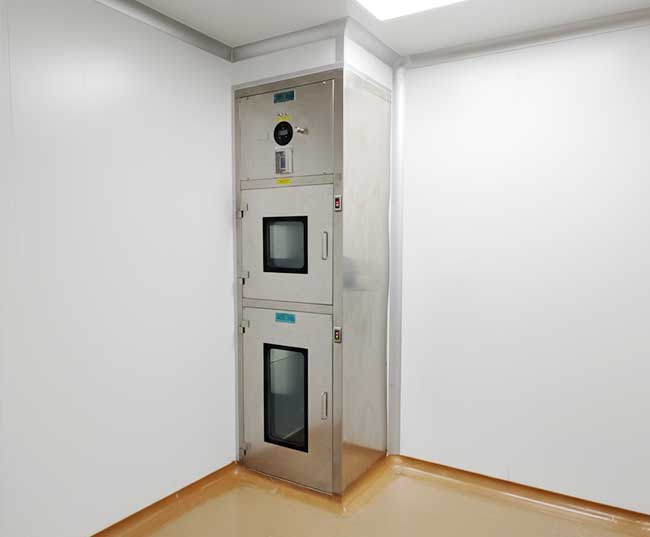

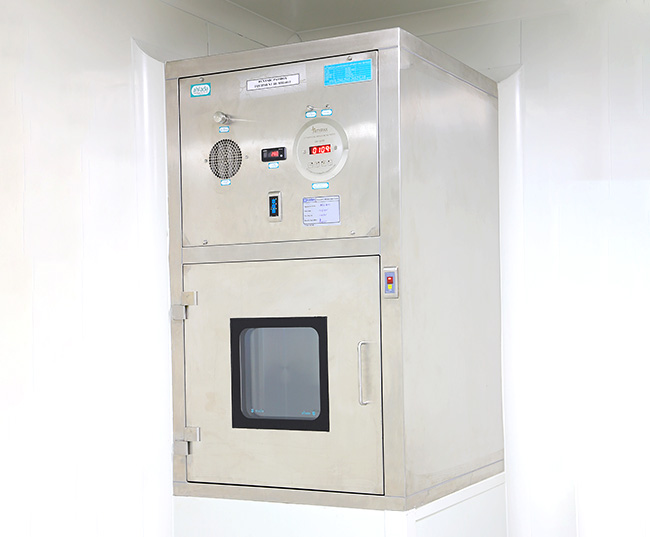

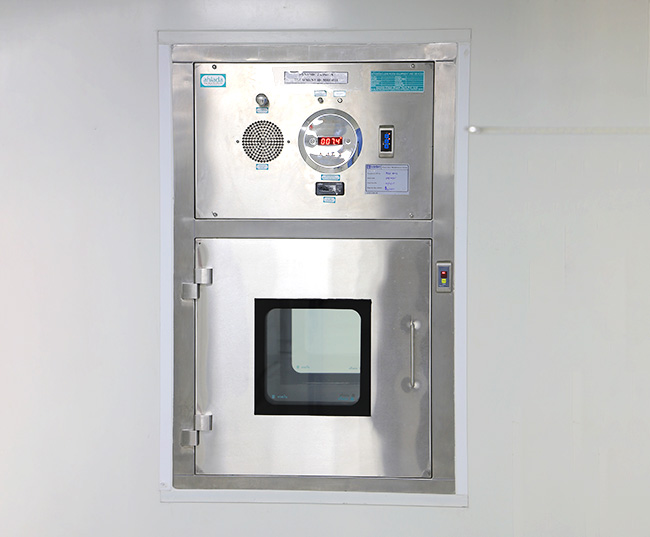

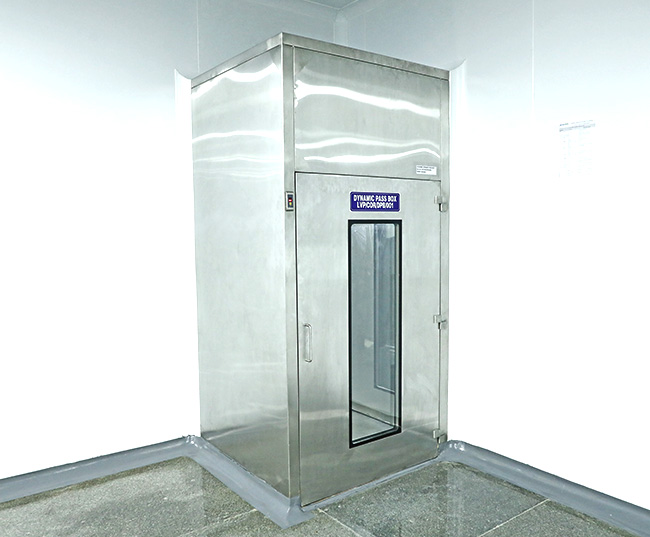

Dynamic Pass Box is used to transfer materials between cleanroom areas of different cleanliness classifications. It is designed to reduce particulate contamination by continuously supplying HEPA-filtered air into the internal chamber during material transfer.

The unit is equipped with a motor-blower system and HEPA filtration to ensure effective air cleanliness within the transfer chamber. An interlocking mechanism prevents simultaneous door opening, thereby avoiding cross-contamination and maintaining pressure integrity between connected areas.

Technical Details:

  • MOC : SS 304 / SS 316
  • Double-walled construction.
  • Cleanliness Classification: ISO Class 5
  • HEPA filter - H14 Grade
  • Pre-filter and Fresh air filter - F5 Grade
  • High-efficiency, statically & dynamically balanced AC / EC blower
  • Differential pressure indicator with audio-visual safety alarms
  • Double-glazed toughened glass doors
  • Electromagnetic interlocking system.
  • SS Perforated safety grill for HEPA filter.
  • Advanced microcontroller based system for ON/OFF operation with blower failure indication.
  • Energy-efficient LED Lighting system.
  • UV Light with Hour meter.
  • Advanced microcontroller based interlocking system with LCD display and inbuilt DP Indicators on Both sides (Optional)
