De-dusting System is designed to remove loose particles and dust from incoming materials before they are transferred from the warehousing area into the quarantine zone. The system uses a combination of high-velocity air jets, a four-sided brushing mechanism, and a multi-stage filtration process to ensure effective particulate removal.
The motorized roller conveyor transfers heavy-load material through the de-dusting chamber, where a four-sided brushing mechanism and high-velocity air from adjustable nozzles remove surface dust. The exhaust blowers extract dust-laden air, while heavier particles settle in the bottom tray. The cleaned material then moves to the exit-side idler conveyor for operator collection and further processing.
Get A Quote
×
Technical Details:
MOC : SS 304 / SS 316
Pre-filter – G4 Grade
Supply filter – F7 Grade
Exhaust filter – G2 Grade
High-static, high-efficiency, statically & dynamically balanced AC blower
Differential pressure indicator with audio-visual safety alarms
SS Perforated safety grill for pre-filter
SS adjustable air Jet Nozzles.
Energy-efficient LED Lighting system

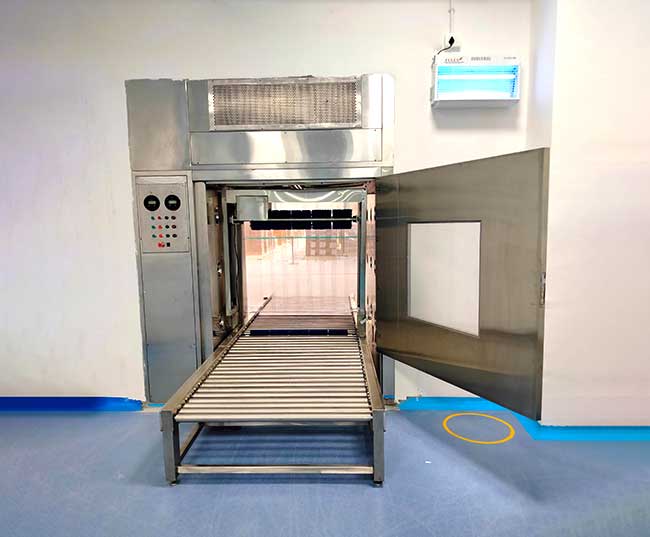

Double-glazed view window door at entry.

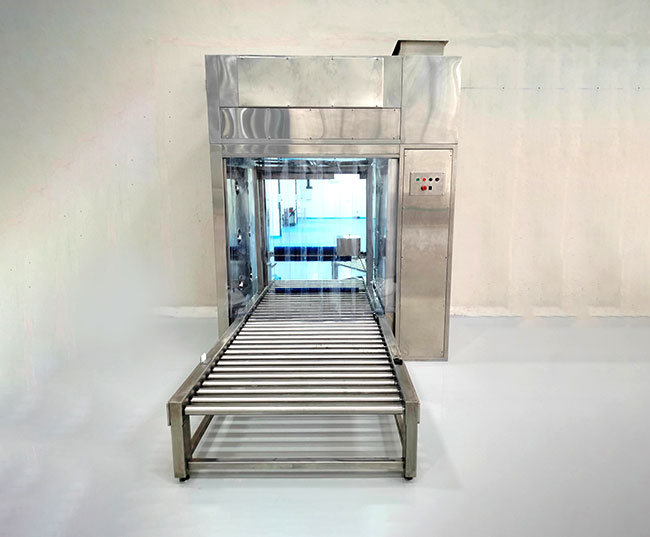

PVC Strip Curtains at exit
Air Velocity at nozzle Face Area : 3400 – 6000 FPM
SS roller motorized conveyor (entry) + SS roller Idler conveyor (exit)
SS roller motorized conveyor with four sided brushing system (inside the booth)
Conveyor Speed: 3–15 m/min (adjustable)
Load Capacity : Customizable (30–700 kg or more)
Removable dust collection tray.
HMI touch screen with PLC automation system (optional)
