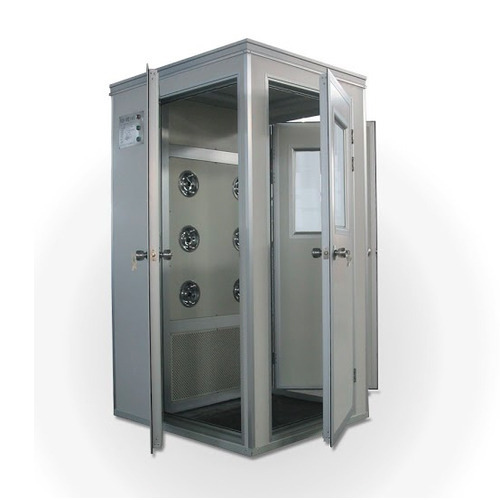

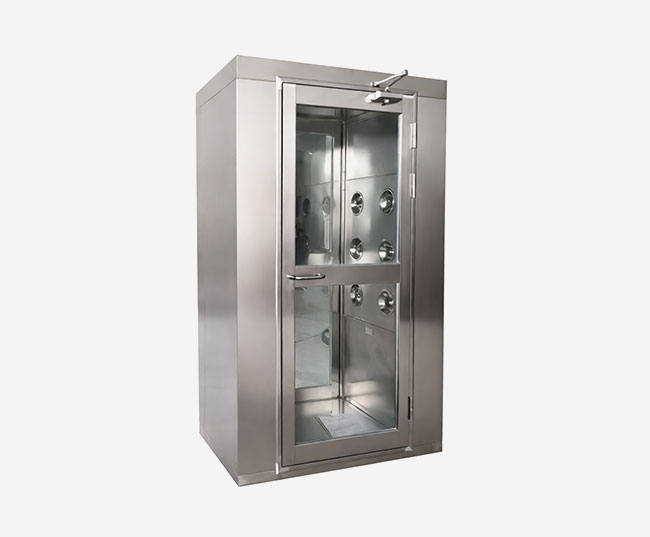

Air Shower is designed to minimize the risk of contamination caused by personnel entering a cleanroom. When a person enters the Air Shower and closes the entry door, both doors are automatically interlocked, and the shower cycle begins. High-velocity air jets are activated for a preset duration, effectively removing particulate matter from the individual.
The preset shower time is adjustable from 0 to 255 seconds. The system is equipped with electromagnetic interlocking, ensuring that only one door can be opened at a time. Once the preset cycle is completed, the exit door unlocks, allowing the person to enter the cleanroom.
The air circulated during the shower cycle is filtered and re-circulated through a multi-stage filtration system consisting of pre-filters and HEPA filters to remove contaminants. Clean, filtered air is then routed back through the nozzles to maintain effective decontamination.
Get A Quote
×
Technical Details:
MOC : SS 304 / SS 316
Cleanliness Classification: ISO Class 5
HEPA filter - H14 Grade
Pre-filter and Fresh air filter - F5 Grade
High-static, high-efficiency, statically & dynamically balanced AC blower
Air Velocity at nozzle Face Area : 3400 – 6000 FPM
Differential pressure indicator with audio-visual safety alarms
SS Perforated safety grill for pre-filter
Advanced microcontroller based Electromagnetic interlocking system.
Emergency door release switch inside the chamber
SS adjustable Air Jet Nozzles.
Energy-efficient LED Lighting system
Double-glazed toughened glass doors
HMI touch screen with PLC automation system (optional)
